Splitter Planning and Utilization in FTTH Network (Complete Guide 2026)
Introduction
In FTTH networks, splitter planning plays a critical role in network performance. A poorly planned splitter network can lead to:
Low optical power
Network congestion
Difficult maintenance
Customer connectivity issues
For broadband engineers and ISPs, proper splitter utilization ensures stable internet and efficient fiber distribution.
In this guide, you will learn:
What is a fiber splitter
Types of splitters
Split ratios used in FTTH
Power loss calculation
Best planning practices
What is a Fiber Splitter?
A fiber splitter is a passive device that divides a single optical signal into multiple outputs.
In Gigabit Passive Optical Network (GPON) architecture, the splitter allows one fiber line from the OLT to serve multiple customers.
Example:
1 fiber input → 32 customer connections
This is why FTTH networks are called point-to-multipoint networks.
Types of Fiber Splitters
There are two main types used in FTTH networks:
1️⃣ PLC Splitter (Planar Lightwave Circuit)
Most commonly used in modern FTTH networks.
Advantages:
Uniform signal distribution
Better stability
Supports high split ratios
2️⃣ FBT Splitter (Fused Biconical Taper)
Older technology.
Used mainly in small networks with low split ratios.
Common Split Ratios in FTTH
| Split Ratio | Users Supported |
|---|---|
| 1:4 | 4 customers |
| 1:8 | 8 customers |
| 1:16 | 16 customers |
| 1:32 | 32 customers |
| 1:64 | 64 customers |
Most ISPs prefer 1:16 or 1:32 for better performance.
Higher split ratio = more power loss.
Splitter Optical Loss
Each splitter introduces signal loss.
Approximate loss values:
| Split Ratio | Loss (dB) |
|---|---|
| 1:4 | ~7 dB |
| 1:8 | ~10.5 dB |
| 1:16 | ~13.5 dB |
| 1:32 | ~17 dB |
| 1:64 | ~20 dB |
Because of this, splitter planning must consider the optical link budget.
Two-Level Splitting in FTTH
Many networks use two-stage splitting.
Example:
OLT → 1:4 splitter → 1:16 splitter → Customers
Total users served = 64
This helps distribute fiber efficiently across large areas.

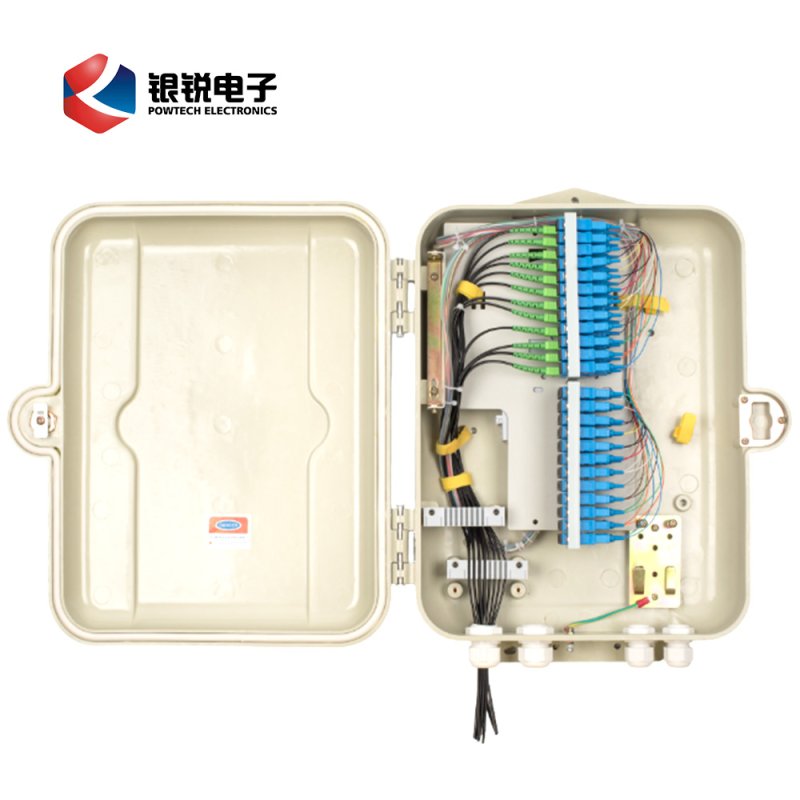

Where Splitters Are Installed
Splitters are commonly placed in:
FDT (Fiber Distribution Terminal)
FAT (Fiber Access Terminal)
Joint closure
Proper installation ensures easier maintenance and troubleshooting.
Best Practices for Splitter Planning
✔ Keep splitter close to customer cluster
✔ Avoid unnecessary long drop fiber
✔ Maintain proper documentation
✔ Avoid overloading split ports
✔ Plan for future expansion
Good planning reduces future network upgrades.
Common Splitter Problems
Engineers often face these issues:
High insertion loss
Water entry in closure
Port damage
Wrong fiber mapping
Improper labeling
Proper installation and maintenance help prevent these problems.
Example Real Field Scenario
Area: Residential colony
Planning:
OLT → 1:4 splitter at FDT
Each output → 1:16 splitter at FAT
Total capacity = 64 users
This structure provides balanced network distribution.
Why Splitter Planning is Important
Good splitter planning ensures:
Proper optical power levels
Efficient fiber usage
Easy fault detection
Better network scalability
Poor planning can cause major network performance issues later.
Conclusion
Splitter planning is one of the most important parts of FTTH network design.
Understanding split ratios, optical loss, and proper distribution helps engineers build stable broadband networks.
A well-planned splitter architecture ensures better service quality, lower maintenance costs, and satisfied customers.
